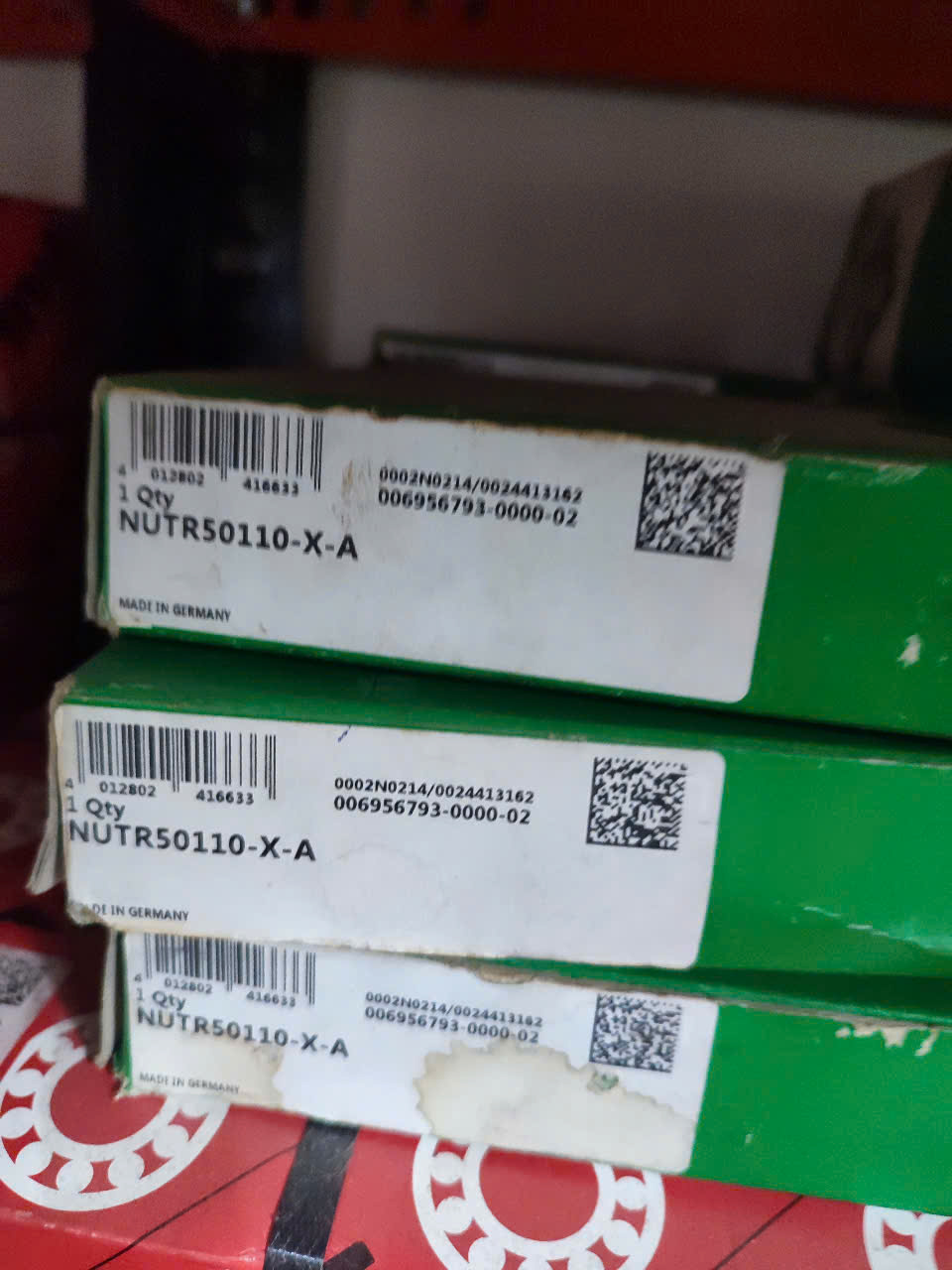

Vòng bi NUTR50110X-A-INA
Main Dimensions & Performance Data
| d | 50 mm | Bore diameter |
| D | 110 mm | Outside diameter |
| B | 32 mm | Width of the bearing |
| Cr w | 77.000 N | Basic dynamic load rating, radial |
| C0r w | 127.000 N | Basic static load rating, radial |
| Cur w | 18.000 N | Fatigue load limit, radial |
| nD G | 1.300 1/min | Speed on permanent grease lubrication |
| F0r per | 127.000 N | Permissible static load, radial |
| Fr per | 127.000 N | Permissible dynamic load outer ring, radial |
| ≈m | 1,681 kg | Weight |
Dimensions
| C | 30 mm | Width, outer ring |
| d2 | 59,8 mm | Stop diameter of thrust washer |
| rmin | 1,1 mm | Minimum chamfer dimension |
| r1 min | 0,6 mm | Minimum chamfer dimension |
